| Quick Answer: Installing an EV charger in Malaysia requires choosing between an AC charger (7kW or 22kW, ideal for home use) and a DC fast charger (up to 180kW, suited for commercial premises). For a landed house in Malaysia, a 7kW single-phase AC charger is the most practical and affordable home charging solution, requiring only a standard 32A circuit from your TNB supply. Installation typically costs between RM 1,500–RM 3,500, depending on wiring complexity. |
Why Home EV Charging Matters for Malaysian EV Owners
Electric vehicles are growing fast in Malaysia. With models like the BYD Atto 3, Hyundai IONIQ 5, BMW iX, and Volvo EX40 now widely available, more Malaysians are making the switch to cleaner, cheaper transportation.
But here is one question every new EV owner asks first: “Where do I charge my car?”
Public charging infrastructure in Malaysia is expanding. However, coverage is still uneven in many areas. Chargers at malls and highway rest stops can be occupied, out of service, or simply too slow for a full top-up. Because of this, home EV charging is more than just a convenience. It becomes the backbone of your EV ownership experience.
Charging at home means:
- You wake up every morning with a full battery.
- You charge overnight at lower off-peak electricity tariffs.
- You skip public charger queues entirely.
- You save up to 60–70% compared to petrol costs over time.
For Malaysian homeowners — especially those in landed properties — installing a dedicated EV charger is one of the best investments you can make alongside your EV purchase.
Types of EV Chargers in Malaysia: 7kW, 22kW, and 180kW Compared
Here is a clear, side-by-side breakdown of the three main EV charger types relevant to Malaysian EV owners — based on the Amcharge product range.

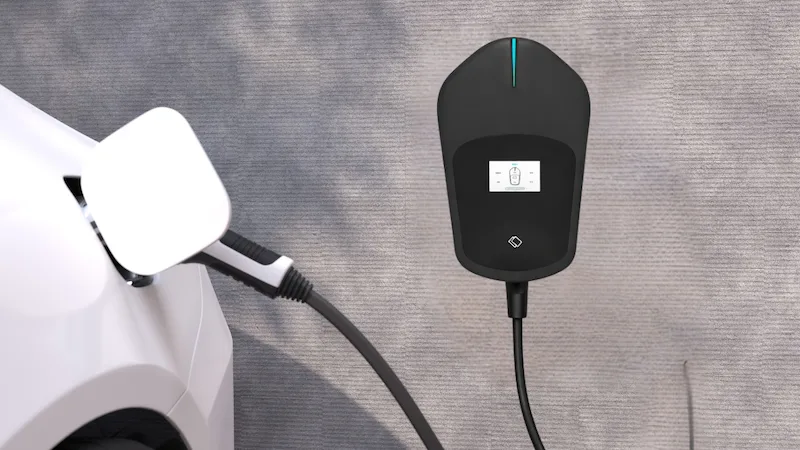

7kW Mode 3 AC Charger — Best for Home Use
Product: AMC AMCHARGE ACS07 Series
The 7kW AC charger is the gold standard for residential EV charging in Malaysia. It connects to a standard single-phase 230V supply — the same electrical supply that powers most Malaysian landed homes.
| Specification | Detail |
| Charger Type | AC Mode 3 |
| Rated Power | 7 kW |
| Input Voltage | 230V, Single-Phase |
| Input/Output Current | 32A |
| IP Rating | IP65 (weatherproof) |
| Connectivity | WiFi, OCPP 1.6 |
| Display | LCD screen (ACS07-202W) |
| Protection | Surge, Over-temperature, Leakage, CP Fault |
| Compliance | IEC 61851-1, IEC 61851-21-2, CE |
| Cable Length | 5 metres |
| RFID Access | Yes |
Key Features:
- Bluetooth connectivity for personalised charging schedules
- Remote upgrade support via WiFi
- IP65-rated — fully weatherproof for outdoor installation
- On-board metering for accurate energy tracking
- Compact wall-mounted design (451 × 277 × 126 mm)
Who should choose the 7kW AC charger?
Any Malaysian homeowner with a landed property and a single-phase TNB supply. It is the simplest, most affordable, and most practical home EV charging solution available.
22kW Mode 3 AC Charger — For Three-Phase Homes or Small Business
Product: AMC AMCHARGE ACS22 Series
The 22kW AC charger is three times faster than the 7kW unit, but it requires a three-phase electrical supply (380V). Most standard Malaysian homes run on single-phase supply, so this charger is better suited for:
- Landed homes that have already upgraded to three-phase supply
- Semi-detached or bungalow owners who run heavy appliances (air conditioning systems, workshop tools)
- Small businesses, F&B outlets, or offices that want workplace charging
| Specification | Detail |
| Charger Type | AC Mode 3 |
| Rated Power | 22 kW |
| Input Voltage | 380V, Three-Phase |
| Input/Output Current | 32A |
| IP Rating | IP65 (weatherproof) |
| Connectivity | WiFi, OCPP 1.6 |
| Display | LCD screen |
| Protection | Surge, Over-temperature, Leakage, CP Fault |
| Compliance | IEC 61851-1, IEC 61851-21-2, CE |
| Cable Length | 5 metres |
| RFID Access | Yes |
Key Features:
- Faster charge speeds — ideal if you drive 200+ km daily
- Bluetooth for personalised settings and scheduling
- On-board metering available
- Same robust IP65 weatherproof housing as the 7kW model
- OCPP 1.6 protocol for smart charging network integration
Important note: Even if you install a 22kW charger, your car’s onboard charger must also support 22kW AC charging. Most EVs accept 7kW to 11kW AC; only select models (e.g., Renault Zoe, Porsche Taycan) can charge at the full 22kW.

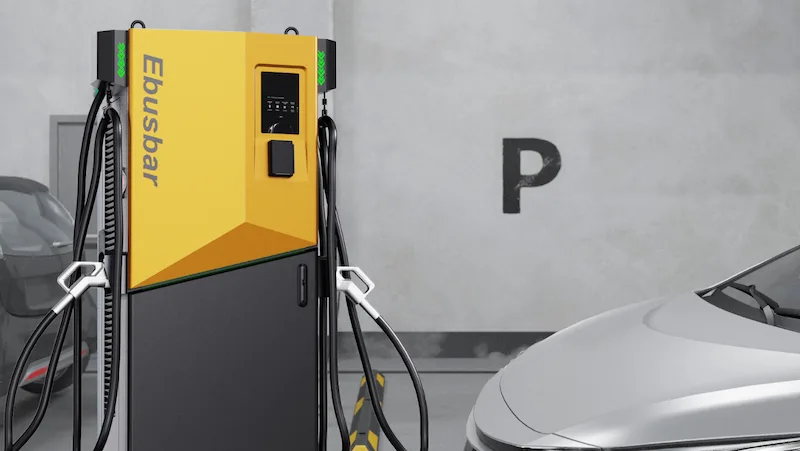

180kW DC Fast Charger — Commercial & Highway Grade
Product: AMC AMCHARGE 180kW Dual Outlet CCS2 Charger
The 180kW DC fast charger is a heavy-duty commercial unit built for public charging stations, business parks, and highway rest areas. It is not intended for residential home installation due to its high power draw (3-phase, 400VAC), large physical footprint (993 × 599 × 2017 mm), and the requirement for dedicated transformer infrastructure.
| Specification | Detail |
| Charger Type | DC Fast Charger |
| Rated Power | 60 kW / 120 kW / 180 kW (configurable) |
| Input Voltage | AC400V ± 10%, Three-Phase |
| Output Current | Up to 300A (per CCS2 gun) |
| Dual Outlet | Yes — 2 simultaneous vehicles |
| IP Rating | IP54 |
| Connectivity | WiFi, 4G, Ethernet |
| Display | 10.1-inch LCD touchscreen |
| User Authentication | RFID Card, Payment Card, QR Code |
| Protocol | OCPP 1.6, PLC (DIN 70121) |
| Protection | Voltage, Overload, Short-circuit, Leakage, Anti-thunder |
| Compliance | IEC 61851-1, IEC 61851-23 |
| Net Weight | 313–375 kg |
Key Features:
- Dual CCS2 outlets for simultaneous two-vehicle charging
- 10.1-inch touchscreen with multiple payment methods
- 4G/Ethernet/WiFi connectivity for fleet and network management
- Retractable cable management system
- Comprehensive protection suite including anti-thunder and battery insulation monitoring
- OCPP 1.6 backend for commercial charging management
Who should choose the 180kW DC fast charger?
Property developers, highway rest stop operators, commercial fleet owners, and EV charging network operators looking to deploy rapid public charging infrastructure in Malaysia.
EV Charging Time Comparison: How Long Does It Take?
This is the most common question from new EV owners. Charging time depends on three factors: charger power output, your car’s battery capacity, and your car’s maximum AC/DC charging acceptance rate.
The table below uses a 60kWh battery (common size — e.g., BYD Atto 3 Standard Range) as a reference, assuming a charge from 20% to 80% (the optimal charging window).
| Charger Type | Power | Charge Time (20%→80%, 60kWh) | Best For |
| Standard 3-pin plug (Type G) | 2.3kW | ~15–16 hours | Emergency top-up only |
| 7kW AC Home Charger | 7kW | ~5–6 hours | Overnight home charging |
| 22kW AC Charger | 22kW | ~1.5–2 hours | Fast home / workplace |
| 50kW DC Fast Charger | 50kW | ~45–60 min | Public top-up |
| 180kW DC Fast Charger | 180kW | ~12–18 min | Highway rapid charging |
Key insight for Malaysian EV owners: A 7kW home charger plugged in overnight (10–11pm to 6–7am) gives you more than enough time to fully replenish a 60–80kWh battery. You never need to visit a public charger for your daily commute.
How Home EV Charger Installation Works in Malaysia
Installing an EV charger in your Malaysian home is a straightforward process — but there are key requirements to understand before you begin.
- Step 1: Check Your Electrical Supply Type
– Single-phase (230V): Most standard Malaysian terrace houses, semi-D, and link houses. → You can install the 7kW AC charger without upgrading your supply.
– Three-phase (415V/380V): Bungalows, larger semi-D homes, or homes with upgraded supply. → You can install either the 7kW or 22kW AC charger. - Step 2: Assess Your Main Fuse and DB Capacity
A 7kW AC charger draws 32A continuously. Your main fuse and distribution board (DB) must have sufficient spare capacity. Most standard Malaysian landed homes have a 60A or 100A main fuse — enough to add a dedicated 32A circuit for EV charging.
- Step 3: Determine Cable Routing and Charger Placement
– The EV charger is mounted on the porch wall or car porch pillar.
– A dedicated 6mm² or 10mm² copper cable runs from the DB to the charger location.
– Cable is routed through conduit pipes (surface-mounted or concealed in wall).
– Distance from DB to charger is typically 5–20 metres in a standard terrace house. - Step 4: Engage a Licensed Electrical Contractor (Wireman)
In Malaysia, all electrical installation work must be carried out by a Wireman (W) or Electrical Engineer (EE) licensed by the Suruhanjaya Tenaga (Energy Commission). Unlicensed installation voids your home insurance and could create fire or electrocution hazards.
- Step 5: Installation Day
A standard 7kW AC charger installation at a Malaysian landed house typically takes 3–5 hours.

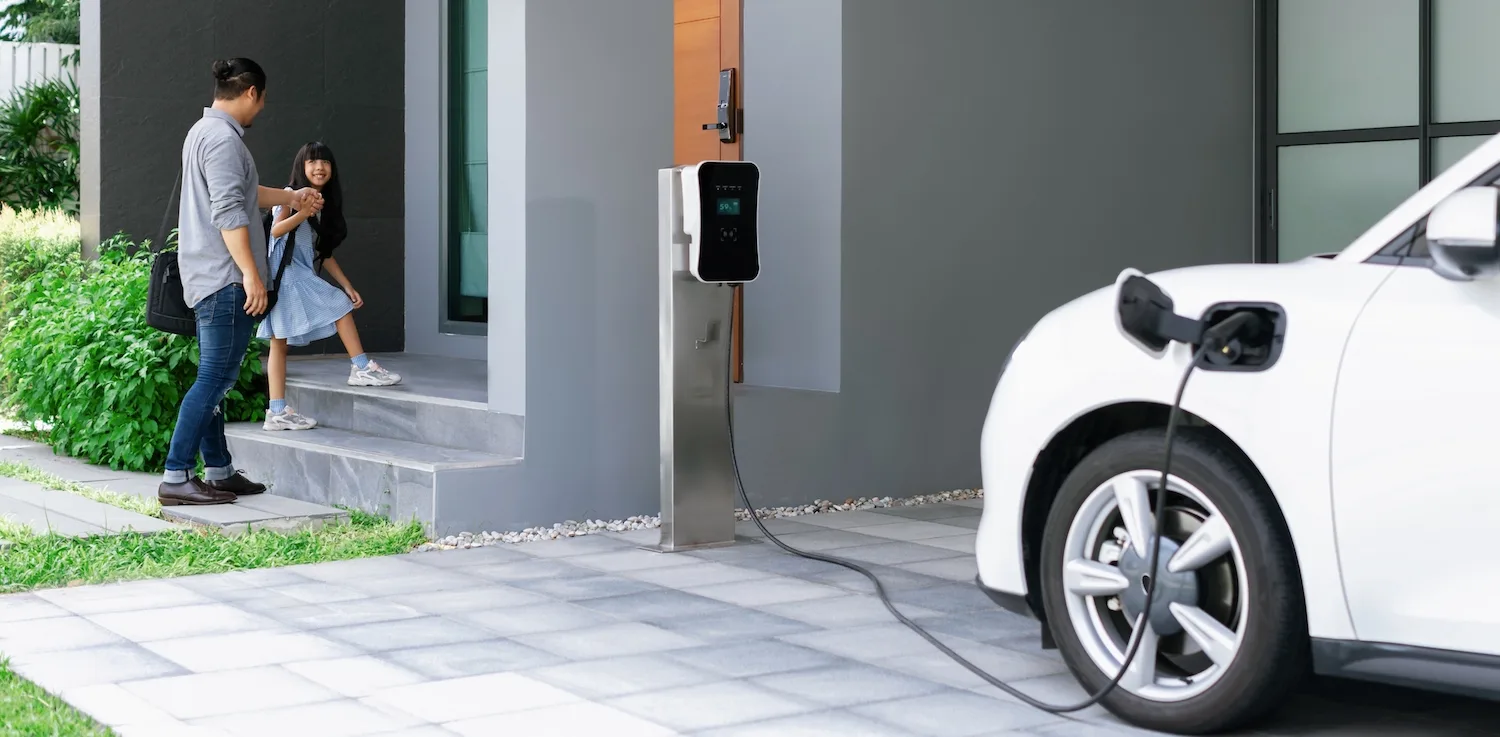

Landed House EV Charger Installation: Special Considerations
Malaysian landed property owners have the most flexibility when it comes to home EV charging installation. Here are specific points to keep in mind:
Porch Wall vs. Pillar Mounting
The AMC AMCHARGE 7kW and 22kW units are compact wall-mounted devices (451 × 277mm face area). They can be installed on any solid wall surface — brick, concrete block, or tiled porch pillar — using the supplied mounting bracket.
Outdoor vs. Indoor Placement
Both the 7kW and 22kW chargers carry an IP65 rating, meaning they are fully protected against dust ingress and direct water jets. This makes them suitable for fully exposed outdoor porch installation in the Malaysian climate, including heavy tropical rain.
Common Questions About EV Chargers in Malaysia
For a 7kW home charger on an existing single-phase supply with sufficient capacity, you typically do not need prior TNB approval. However, if you are upgrading your supply from single-phase to three-phase, or increasing your main fuse size, TNB application is required.
Most AC home chargers in Malaysia use the Type 2 (IEC 62196) connector, which is the standard for European and Asian EV brands sold here (BYD, Hyundai, BMW, Volvo, Mercedes-Benz). DC fast chargers typically use the CCS2 (Combined Charging System) connector. The AMC AMCHARGE 180kW DC charger uses dual CCS2 outlets.
Yes — modern EV chargers and EVs are designed for overnight charging. The AMC AMCHARGE 7kW charger includes over-temperature protection, surge protection, leakage protection, and CP fault detection. Your EV’s battery management system (BMS) will also stop charging automatically when the battery is full.
Charging a 60kWh battery in Malaysia usually costs between RM27 and RM33. In comparison, a full petrol tank often costs RM80–RM120. Therefore, many EV owners save 40–60% on fuel costs.
Why Choose AMCHARGE EV Chargers for Malaysia?
Amcharge is a purpose-built EV charging brand designed with the Malaysian climate and electrical infrastructure in mind. All three charger models — the 7kW, 22kW, and 180kW — carry relevant international certifications (IEC 61851, CE) and are engineered for tropical conditions.
Key reasons Malaysian EV owners and charging operators choose AMCHARGE:
- IP65-rated housing — withstands Malaysia’s heavy rainfall and humidity
- WiFi + OCPP 1.6 — enables smart charging and remote management
- RFID access control — secure, keyless operation for home and commercial use
- Bluetooth app control — personalise your charging schedule and receive notifications
- Comprehensive protection — surge, leakage, over-temperature, and CP fault protection built-in
- Commercial-ready — the 180kW dual-outlet DC fast charger supports RFID, QR code, and payment card authentication for public deployment
Is a 7kW EV Charger Enough for Malaysian Homes?
If you are a new EV owner in Malaysia with a landed property, the path to home charging is simpler than most people think. Start with these steps:
- Confirm your TNB supply type (single-phase or three-phase)
- Choose the right charger — the 7kW AC charger suits most Malaysian homes
- Get a quotation from a licensed installer
- Install and configure your charger with WiFi and any desired scheduling
- Enjoy overnight charging — and never visit a petrol station again
For commercial property owners or EV charging business operators, the 22kW and 180kW DC fast charger options provide scalable, network-ready solutions that can grow with Malaysia’s rapidly expanding EV ecosystem.
